Finland Dock Project

A dock built to fit the particular needs of the outdoor conditions, client, and realities of flowing water.

Project notes

What this project shows

The Finland dock was different from a normal flat build because the site controlled almost every decision. I had to build from a concrete wall out toward the water while keeping the dock level, supported, and useful for people and jet skis.

The ledger, long support beams, posts in the sand, and top planks all had to line up correctly. A small mistake in height or level would have shown up immediately, so I had to slow down and check the structure as I went.

What I liked about this project was that it had to fit the place. It was not just a dock in general. It had to work for that wall, that water, that shoreline, and the way people were actually going to use it.

Build sequence

Start to finish

4 photos in numeric project order

Finland Dock Project progress photo 1 — Step 1
To start this project, I created a ledger and attached it to the concrete wall using expansion bolts. This became the strongest support in the project. After that, I created a small ledge for people to walk and sit on, with a slight overhang. I then dropped the structure one foot and built out toward the water and jet ski platforms. I added long center support beams running the full length of the dock, then installed the support posts in the sand to hold the dock up. I had to make sure there were no mistakes in the dock's level or the height on either side.

Finland Dock Project progress photo 2 — Step 2
Next, I added all the planks to the top of the dock to make it look finished and secure for people to walk on. I used a random pattern to limit excess wood offcuts.

Finland Dock Project progress photo 3 — Step 3
Next, I added all the side trim, and it was almost done. It just needed a few final touches.

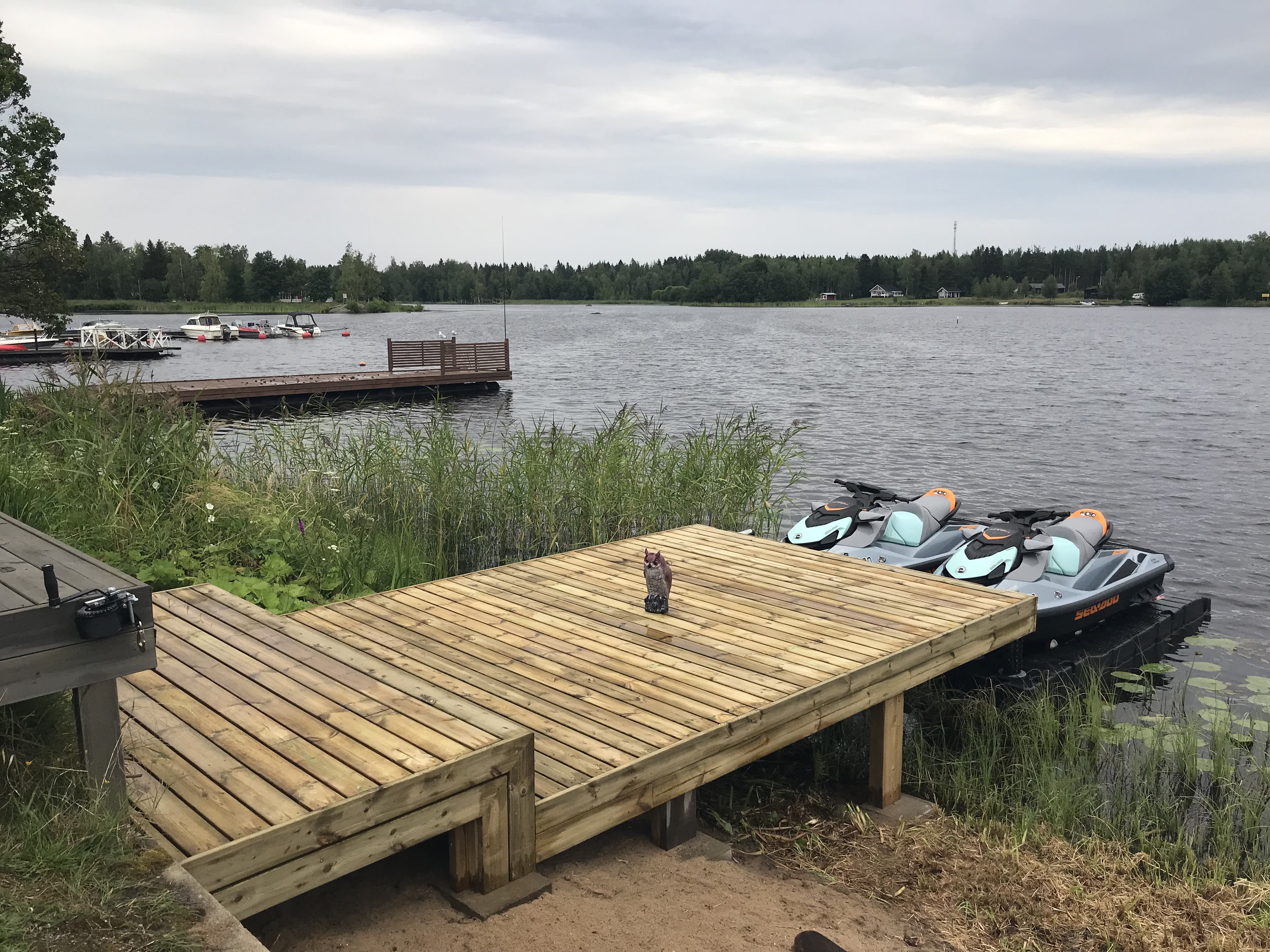

Finland Dock Project progress photo 4 — Step 4
I added bumpers to make sure the jet skis would not hit the dock at a harmful angle. Finally, it was done.
